Sega SKILL FALL REVOLUTION 1 Player

A rotating prize pedestal inside a see-through cabinet. Sixty-four clips. All visible from the aisle.

Overview

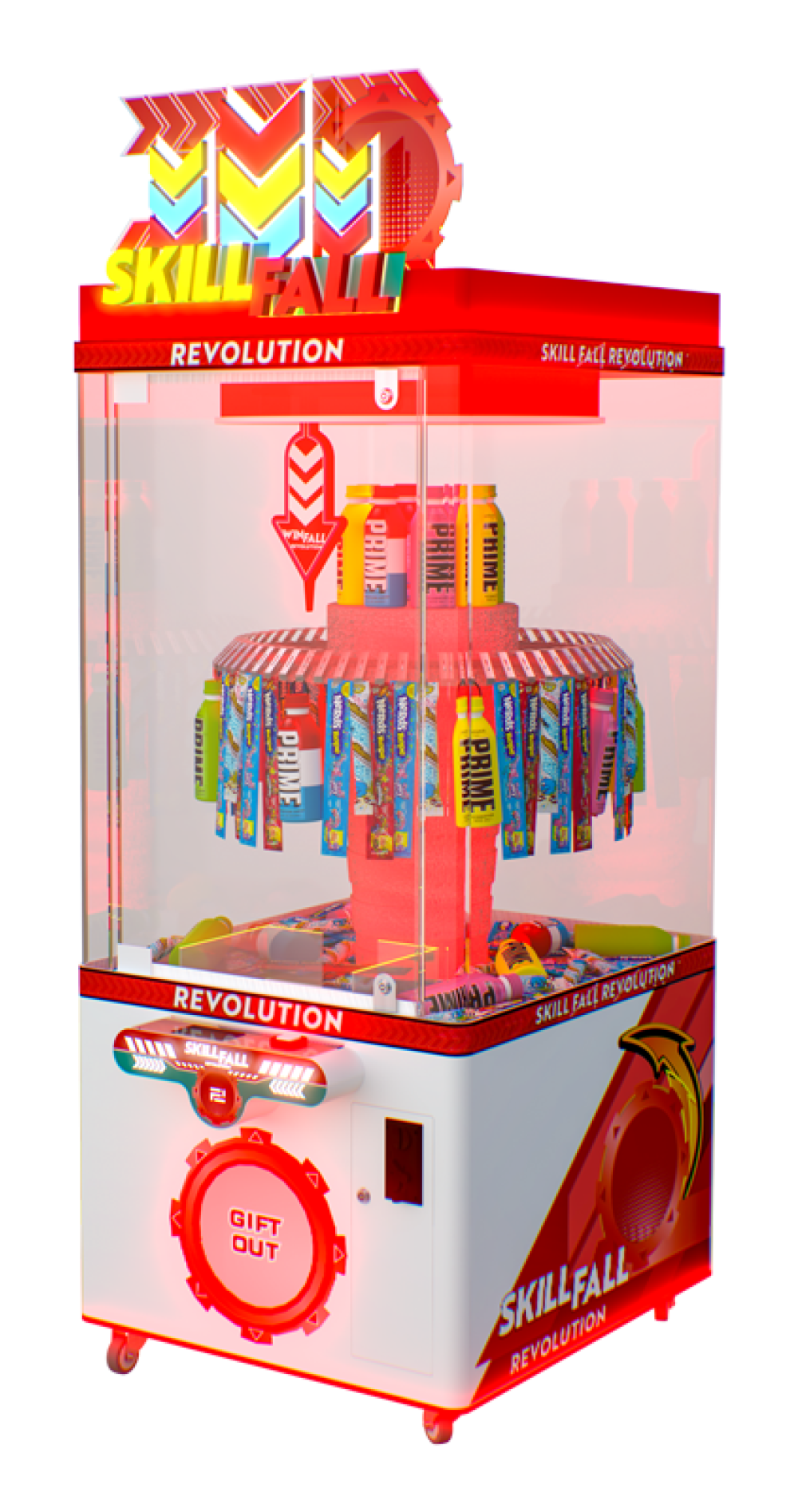

Skill Fall Revolution is a skill-based prize redemption game from Sega Amusements International. The fully transparent cabinet surrounds a rotating prize pedestal loaded with up to 64 clipped prizes, giving bystanders and passing foot traffic an unobstructed view of every prize on the machine. Players time a single button press to release a clip and drop the prize into the win zone — a mechanic accessible to all ages with no complex controls required.

Key Features

See-Through Cabinet with LED Header Lighting

The cabinet panels are fully transparent, with LED header lighting and bright interior illumination throughout. Prizes, the rotating pedestal, and the win zone are visible from every angle — including from the venue entrance — without the player needing to step up to the machine.

Rotating Prize Pedestal with 64 Clips

The central pedestal rotates continuously, displaying all clipped prizes as it turns. Sixty-four prize clips load around the pedestal, and the flat top surface is available to display featured or oversized prizes above the clip field. The rotation keeps the full prize inventory visible throughout each play cycle.

Single Button Skill Mechanic

Gameplay resolves on one timed button press: the player watches the rotating pedestal and presses at the moment a desired prize aligns with the release point. The prize unclips and falls into the win zone. Controls are mounted low on the cabinet, within reach for children and shorter players.

Front-Access Service Entry and Prize Storage

The front entry panel opens for operator access to the cashbox and internal components without repositioning the cabinet. A large prize storage area wraps around the playfield interior, keeping replacement stock on-machine and reducing the number of service visits needed to restock the pedestal.

Three-Color Cabinet Family

The cabinet ships in yellow, blue, and red. Sega positions the unit as best presented as a set of three, with the contrasting colors creating a visual block when the units are arranged together in a row or cluster.

How It Plays

The player watches the pedestal rotate and times a single button press to release the targeted prize from its clip. If the timing lands correctly, the prize drops through the playfield into the win zone. From the aisle, bystanders see the pedestal turning, the clip releasing, and the prize falling — a sequence that reads clearly through the transparent cabinet walls at a distance.

Specifications

Why Operators Love It

Front-Loading Service Door

The front entry panel provides access to the cashbox and internal components from a single side of the cabinet. The unit does not need to be pulled away from a wall or neighboring machine to service it — reducing the floor clearance required during routine collections.

On-Machine Prize Storage Around the Playfield

The interior storage area wraps around the playfield, keeping a significant reserve of prize stock inside the cabinet itself. Operators on route or in high-volume venues can reload the 64 clips without carrying separate stock bins to the machine on every visit.

30-Inch Width Fits Standard Arcade Slots

At 30 inches wide and 35 inches deep, the assembled footprint fits standard arcade floor slots and can be placed three units across in approximately 90 inches of linear wall space — consistent with the manufacturer's recommended three-unit cluster configuration.

Dual Voltage Support

The cabinet runs on both 110V and 220V at 253W, confirmed on the manufacturer's spec sheet. No step-down transformer is required for standard US 110V locations, and the same unit deploys internationally at 220V — useful for operators managing venues across multiple markets.

Frequently Asked Questions

How many prizes does the Skill Fall Revolution hold?

The rotating pedestal accommodates 64 prize clips. Additional stock is stored in the prize storage area that surrounds the playfield inside the cabinet, so operators can reload without bringing external inventory containers to the machine.

What is the assembled footprint of the Skill Fall Revolution?

The single-player unit assembles to 30 inches wide, 35 inches deep, and 83 inches tall, weighing 278 lbs. Shipping dimensions are 31 in W x 35 in D x 73 in H at 337 lbs.

How is the Skill Fall Revolution serviced?

The cabinet features a front-access entry panel for operator access to the cashbox and prize compartment. Because access is from the front, the unit does not need to be moved away from walls or adjacent machines during routine service.

Can the Skill Fall Revolution be used as a standalone unit?

Yes. The Skill Fall Revolution ships and operates as a single-player unit. Sega recommends presenting the machine as a set of three units in contrasting colors (yellow, blue, and red) for maximum visual impact, but each cabinet functions independently.

Ideal Placement

The transparent cabinet and rotating interior make the Skill Fall Revolution a natural fit for high-visibility positions: venue entrances, FEC lobbies, bowling center arcade sections, and trampoline park game areas where foot traffic passes the machine rather than seeking it out. Its 30-inch width also suits convenience store and mini-golf clubhouse game corners where floor space is limited. A three-unit cluster in the available red, blue, and yellow cabinets fills a standard 90-inch wall run.
