Sega On Target 4 Player

Four compressor guns fire with physical recoil. Targets pop at random. Every lane runs simultaneously.

Overview

On Target is a skill-based redemption shooting gallery from Sega Amusements International, built for up to four simultaneous players on a single integrated cabinet. Targets rise at random, so no two rounds play the same, and players can join mid-game — everyone competing for the highest score within the same shared time limit.

Key Features

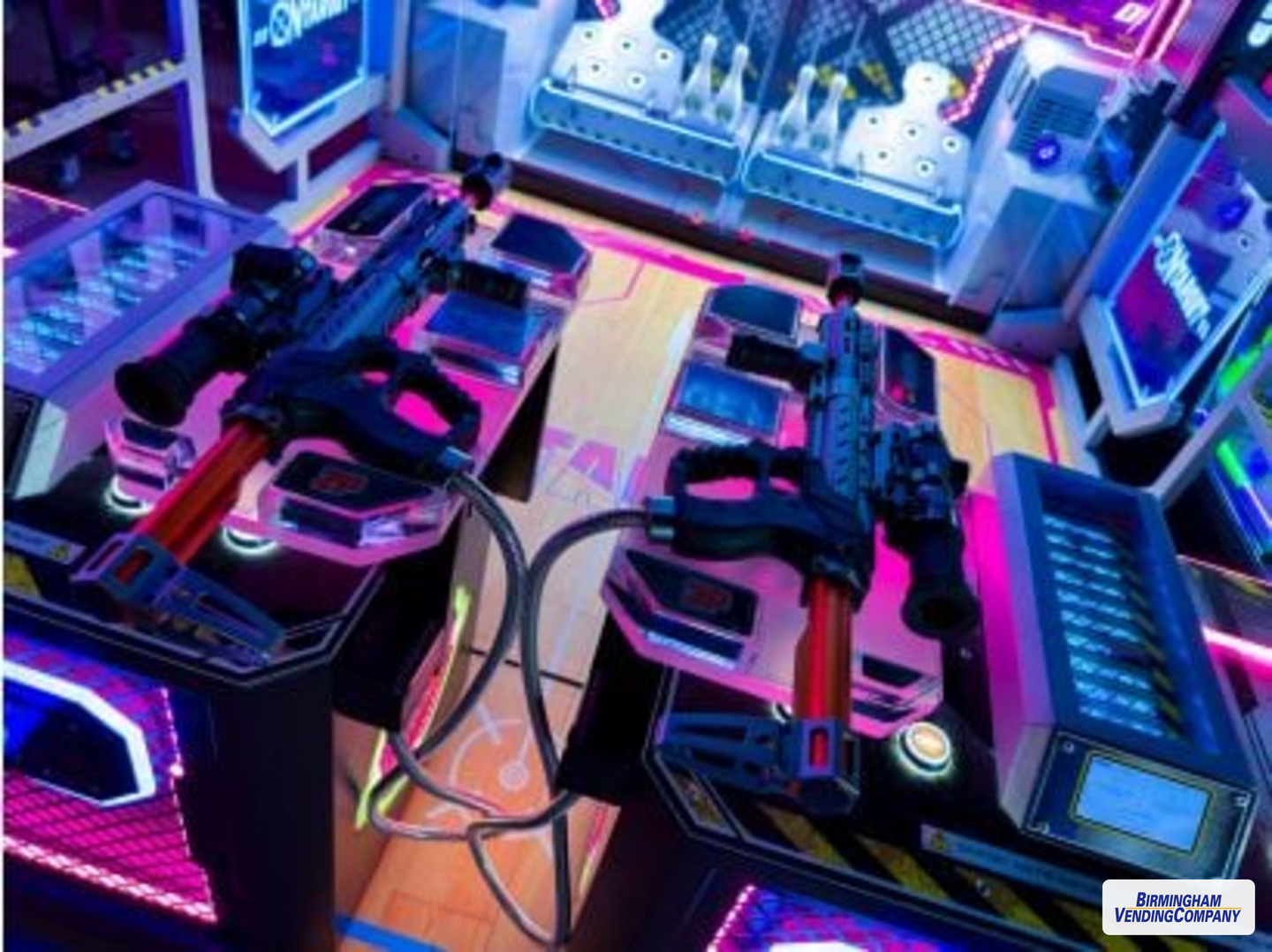

Force Feedback Compressor Guns with Functioning Scope

Each of the four guns is powered by a compressor that produces physical recoil on every shot. The guns also feature a functioning scope, so players aim through a real sight picture rather than pointing a prop. Two dedicated compressor units — each on its own 110V / 15.27A circuit — power the recoil effect across all four player positions simultaneously.

Random Target Sequencing

Targets pop up in a randomized order, so the hit sequence changes every round. Players cannot memorize a fixed pattern between plays, which keeps each game distinct from the last.

Mid-Game Join

Additional players can enter an active round at any point — the cabinet does not require a full four-player lineup to start. All players, regardless of when they joined, share the same game-end timer, keeping the competitive structure intact.

LED Edge Lighting and Full-Cabinet Artwork

Futuristic LED edge lighting runs the full perimeter of the cabinet and remains visible from across a venue floor. The gritty themed artwork panels span the full assembled footprint — 87 inches wide and 94 inches tall — giving the unit a large visual presence on any game floor.

Redemption or Free-Play Configuration

The cabinet can be operated in ticket redemption mode or configured for free play, giving operators the choice of revenue model per location without additional hardware.

How It Plays

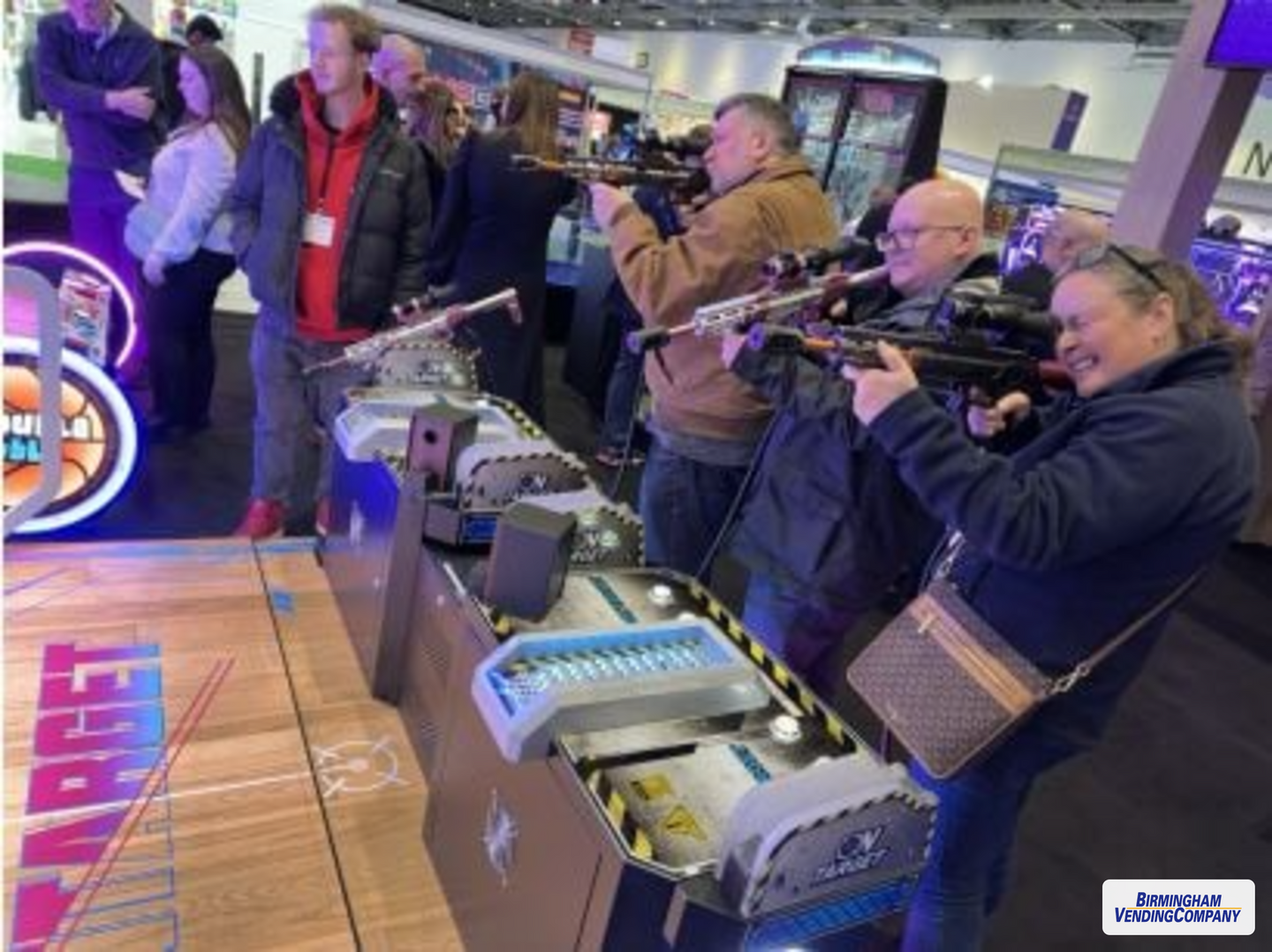

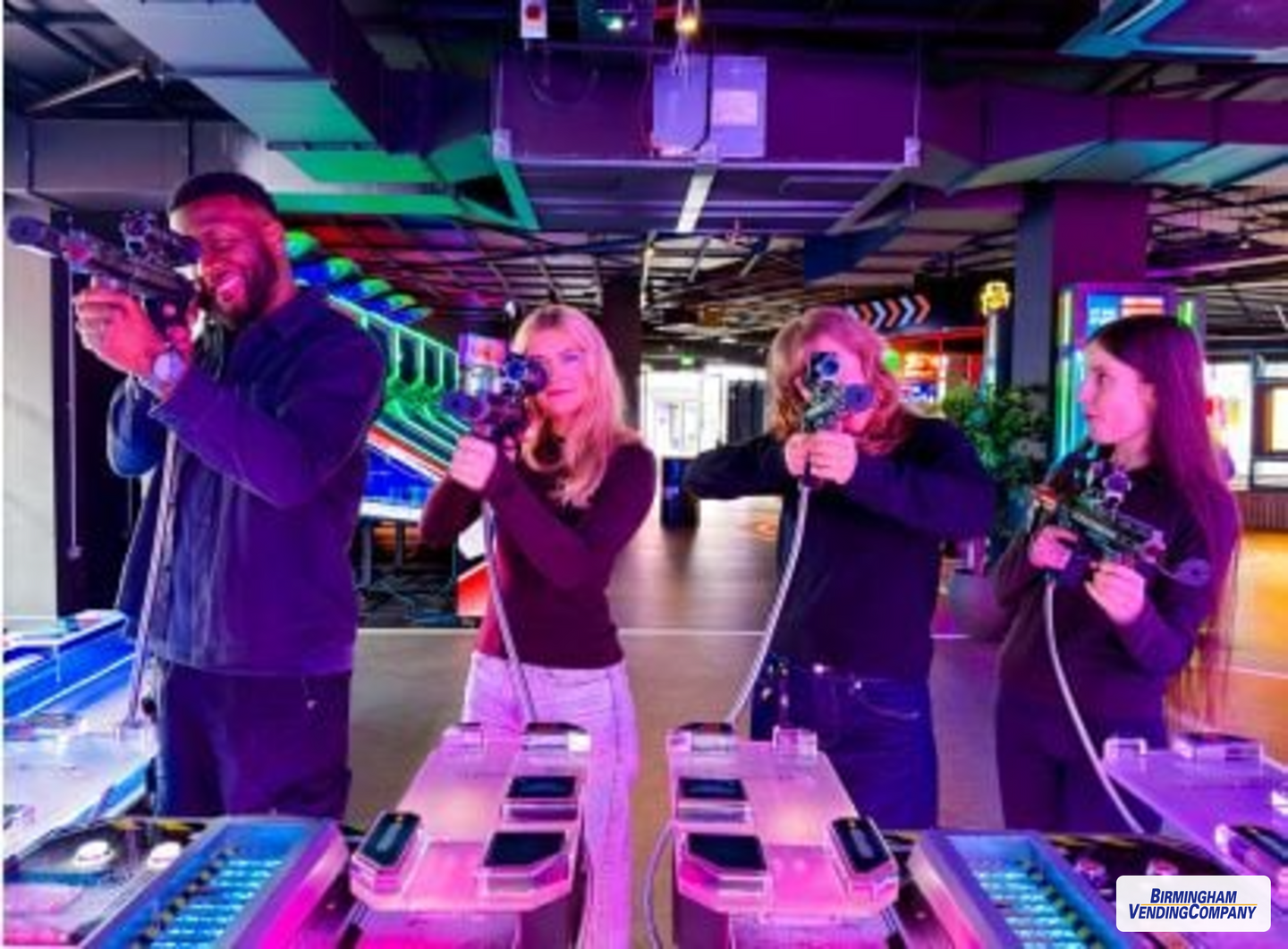

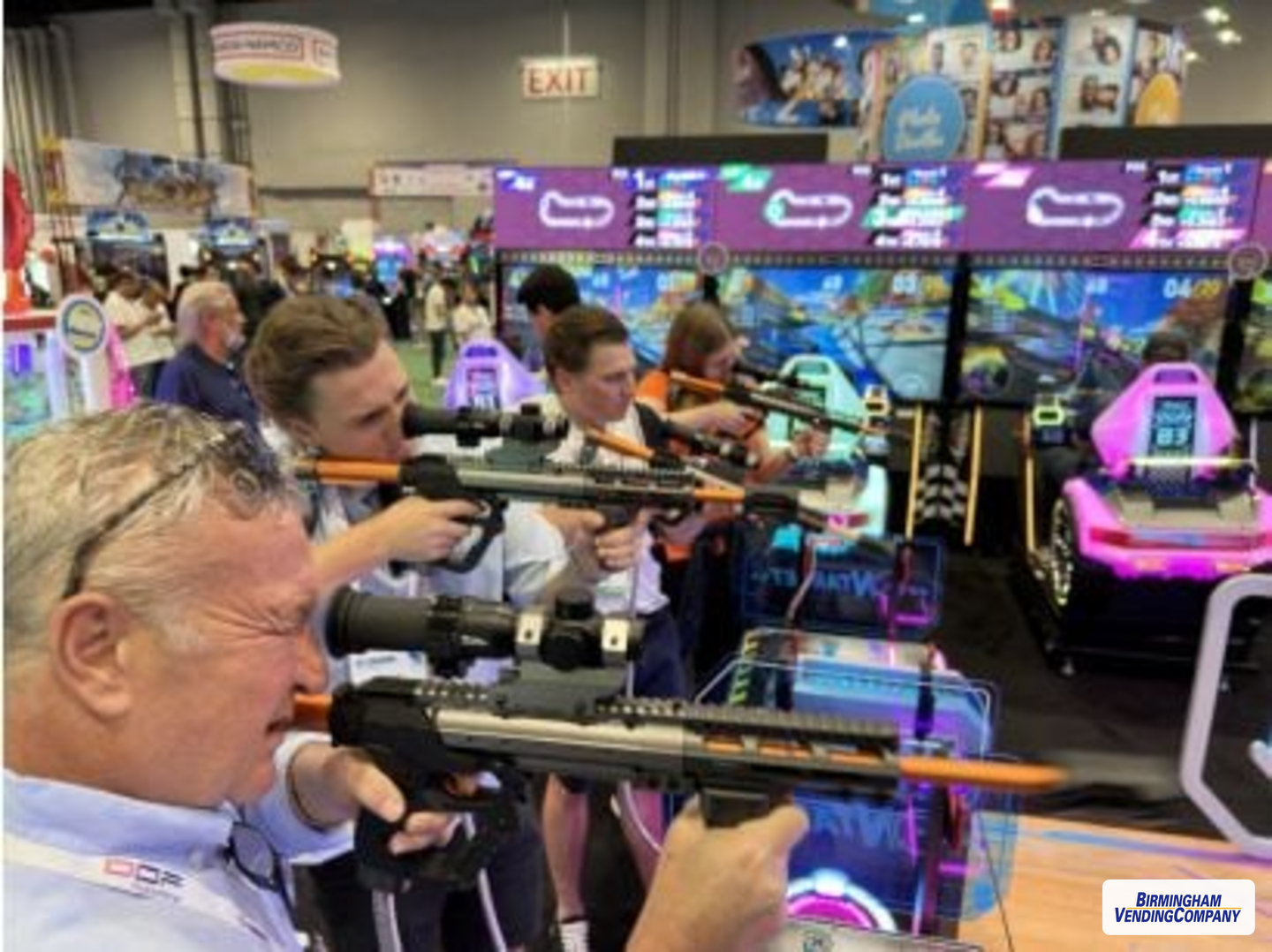

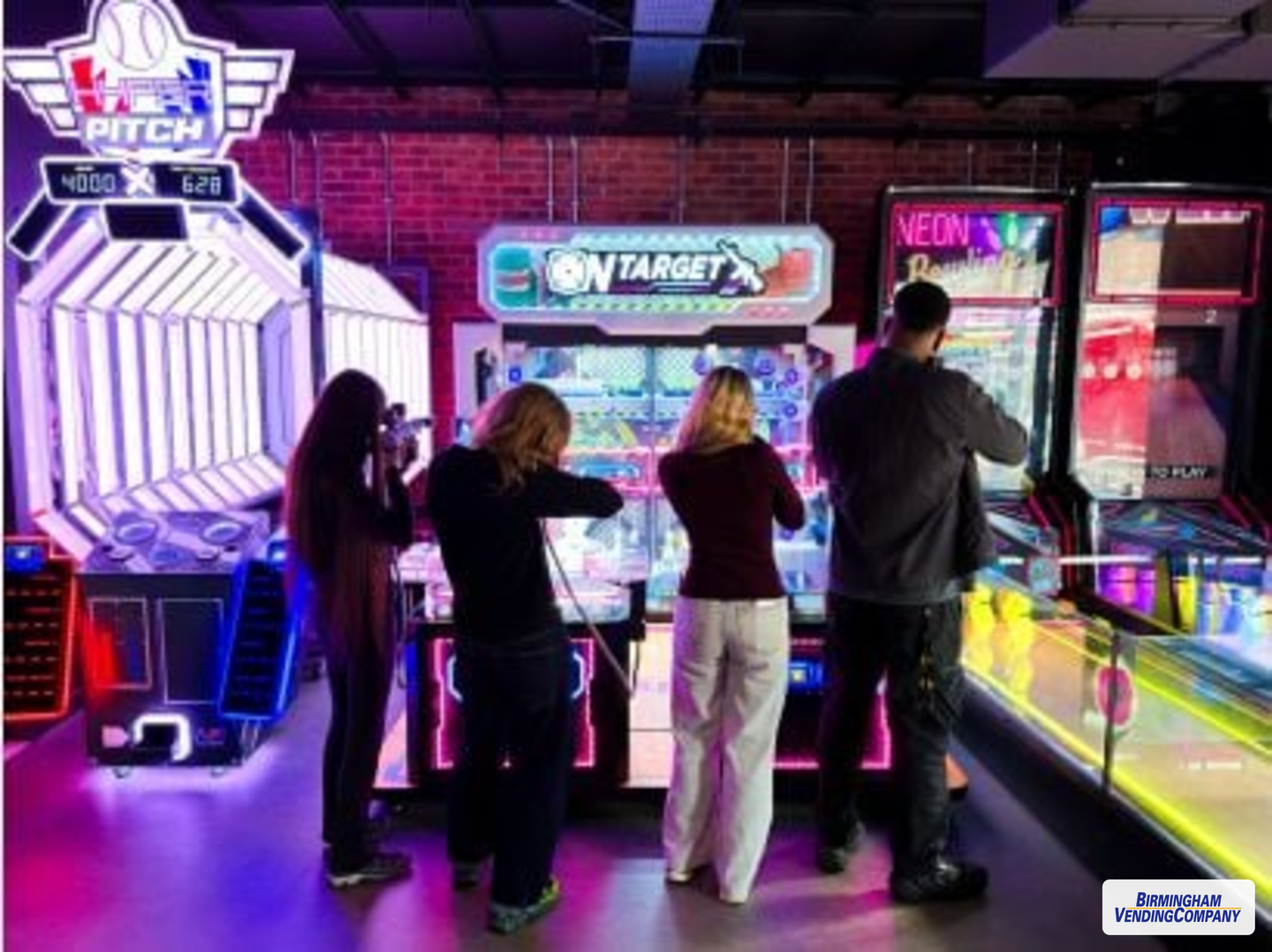

Each player takes up a lane, aims through a working scope, and shoots targets as they randomly pop up within the shared time limit — the compressor delivers a physical recoil pulse on every trigger pull. From across the floor, all four lanes run at once: guns kick, targets drop, and score displays update continuously as players race for the top position. Because targets appear in no fixed order, players at adjacent lanes are reacting to different hit windows at the same moment, producing visible independent action across the full 87-inch width of the cabinet.

Specifications

Why Operators Love It

Three-Plug Power Layout for Compressor Isolation

The cabinet runs on three separate power connections: one for the main electronics and two for the compressors. This separation means a compressor circuit can be isolated for service without powering down the full cabinet — useful for diagnosis in a live venue environment.

Ships in Three Manageable Pieces

The unit arrives as three separate freight pieces — main cabinet, console, and side panel — each with its own shipping dimensions and weight. The largest single piece (the main cabinet) ships at 91 in W x 85 in H x 46 in D and 2,015 lbs, keeping each component within standard freight handling parameters.

Configurable Payout Mode per Location

Operators can switch between ticket redemption and free-play modes without additional hardware. A single unit can be configured differently across locations on the same route, matching the payout model to each venue's operation.

Container-Optimized Quantity

Four units fit a 20-foot container; eight fit a 40-foot container. These are confirmed shipping quantities, making import volume planning straightforward for multi-unit orders.

Frequently Asked Questions

How many players can use the Sega On Target 4 Player at once?

Up to four players can participate simultaneously on a single cabinet. Additional players can also join an active game mid-round — they are not required to wait for the next cycle to begin.

How many power connections does the Sega On Target 4 Player require?

The unit requires three separate 110V connections: one for the main cabinet at 7.85A / 864W, and two for the compressor units at 15.27A / 1,680W each. All three circuits should be available at the installation location before delivery.

Can the Sega On Target be operated without ticket payout?

Yes. The cabinet supports both redemption and free-play modes. Operators choose which mode to run per location — no additional hardware is required to switch between them.

What is the assembled footprint of the On Target 4 Player?

The fully assembled unit measures 87 inches wide, 124 inches deep, and 94 inches tall, with a total assembled weight of 2,205 lbs. Plan for adequate floor clearance and load-bearing capacity at the installation site before delivery.

Ideal Placement

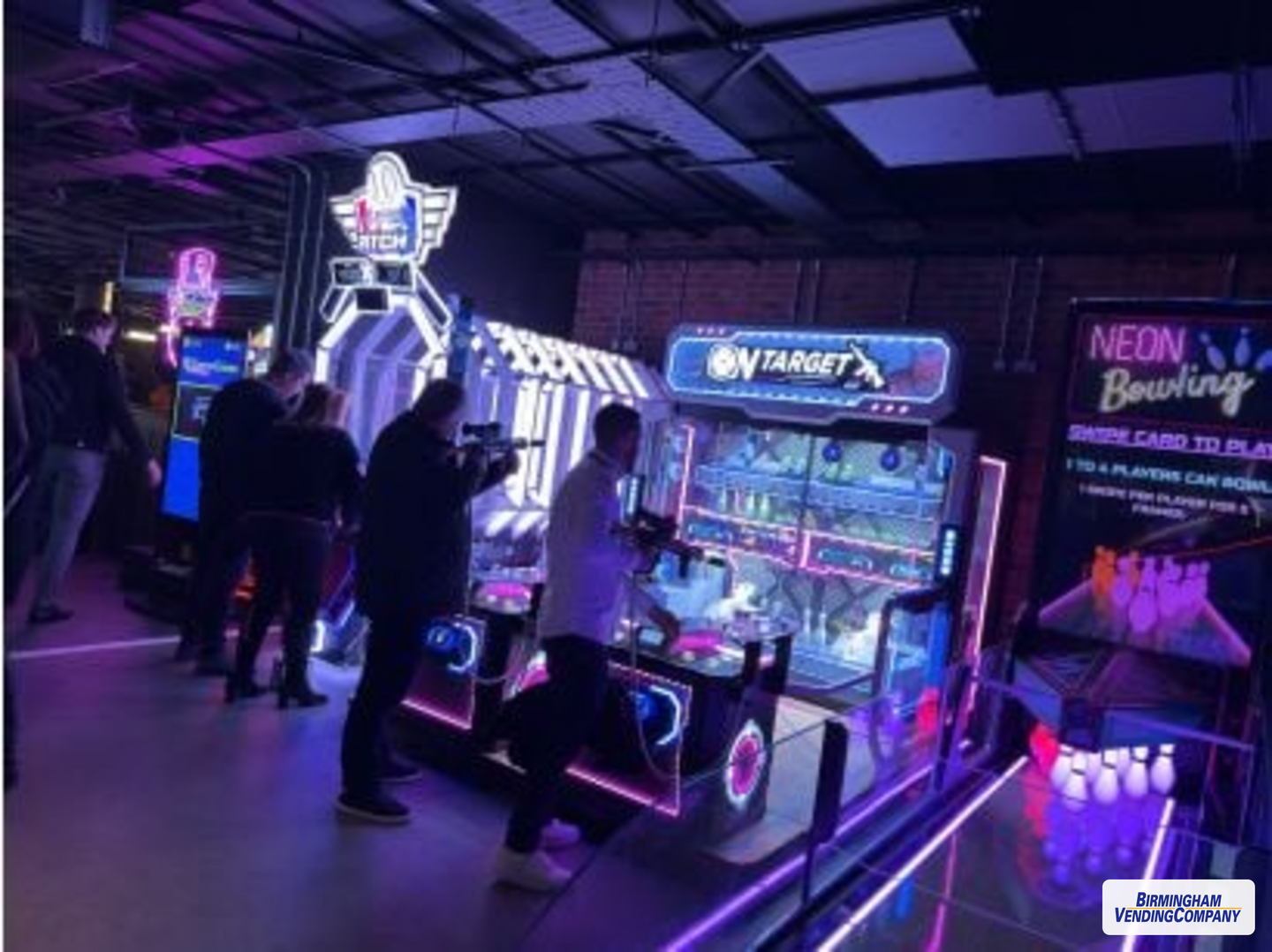

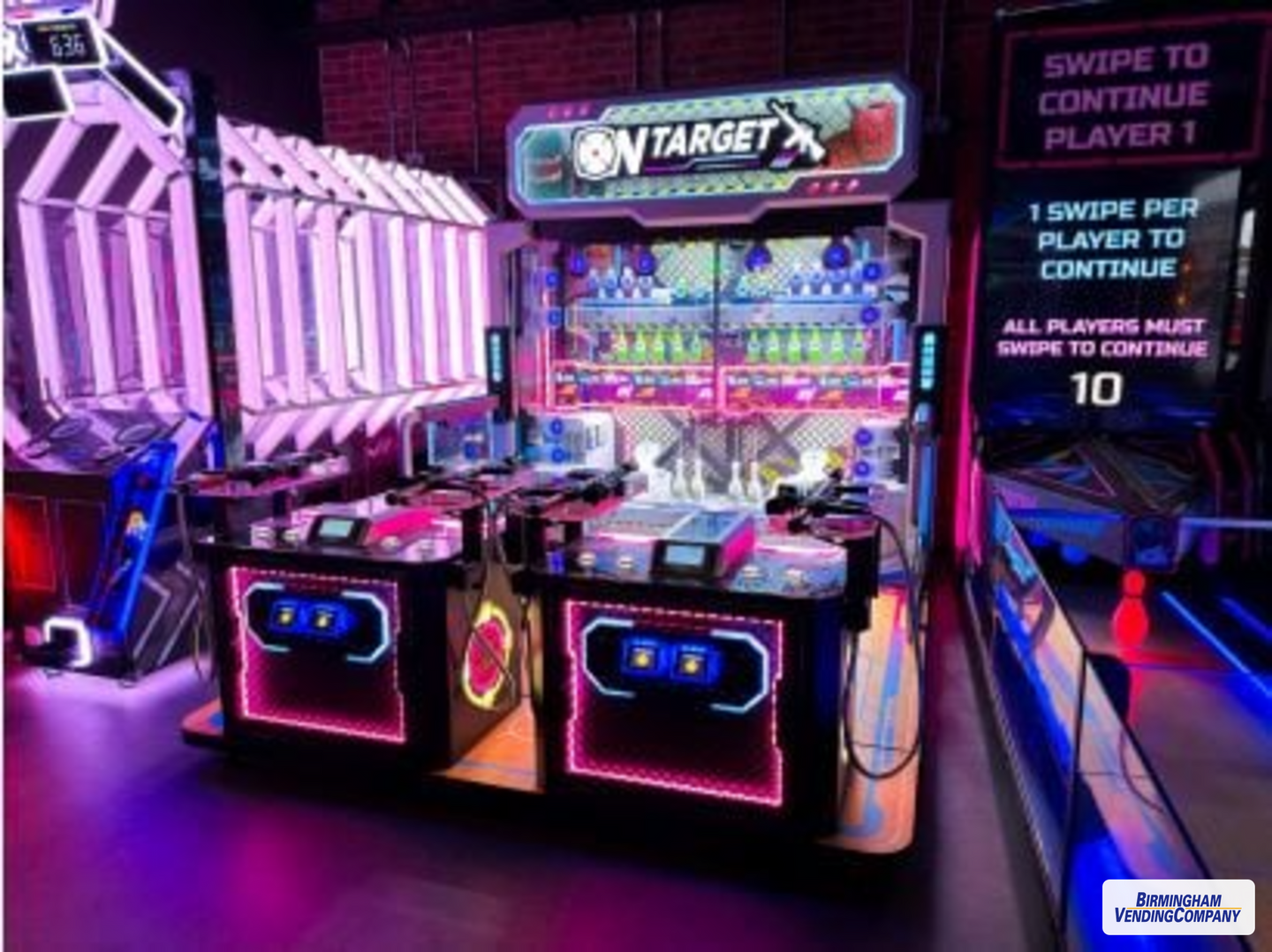

The On Target 4 Player suits high-footfall venues with open floor space to accommodate its 87-inch width and 124-inch depth: family entertainment centers, trampoline parks, bowling center arcades, and large mall arcades. At 94 inches tall with LED edge lighting running the full perimeter, corner or end-of-row placement works well for drawing traffic toward the back of a room.

Shipping & Setup

We offer flexible freight delivery options, including curbside and lift-gate services. Shipping costs and timing are calculated at checkout based on your location and requirements.

Warranty & Support

Your purchase includes a standard manufacturer warranty and access to technical support to ensure long-term performance and uptime.
