Multi-colored balls cascade onto the lane the moment play starts. The clock is already running.
Overview

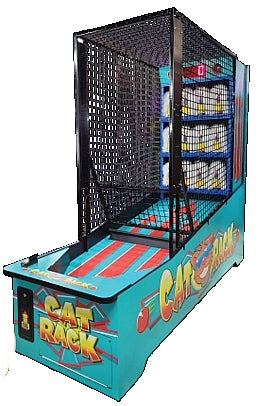

The Bob's Space Racers Cat Rack Attendant-Free Game (AFG) brings the classic midway ball-throw game to the arcade floor without requiring a staff operator. Once play begins, the machine releases multi-colored balls automatically, and the player throws them to knock down targets and accumulate points before time expires. Built-in sensors handle target detection, ball tracking, and game reset between players — the entire cycle runs without intervention. Available in single-lane (MS9710), two-lane (MS97102), and three-lane (MS97103) configurations.
Key Features
Automatic Ball Delivery and Reset
When a game starts, the unit releases multi-colored balls directly to the player. Built-in sensors detect each throw and each target hit, then automatically reset the game for the next player. No attendant is needed to collect balls, re-stack targets, or initiate the next round.
Electronically Configurable Game Settings
Game timing, scoring thresholds, and gameplay options are controlled electronically. Operators can adjust settings to change difficulty, pacing, or payout behavior without mechanical modification — configuration changes are made through the onboard controls.
Specialty Ticket Redemption
The Cat Rack AFG dispenses a custom 2-inch x 4-inch ticket as players score points. The ticket format is customizable and can be redeemed immediately for prizes or saved toward larger rewards, giving players a tangible payout tied to their throw accuracy.
Modular Multi-Unit Configuration
Multiple Cat Rack AFG units can be grouped side by side. The lane footprint of each unit — 123 inches deep by 40 inches wide — allows operators to scale from a single lane to a multi-lane bank depending on available floor space and venue throughput needs. Pre-configured two- and three-lane models (MS97102 and MS97103) are available from the factory.
How It Plays
The player throws multi-colored balls down the lane at a row of target cats, aiming to knock as many down as possible before the countdown timer reaches zero. Each successful hit registers via sensor, and the score updates in real time. From the side, bystanders see the colored balls in flight, the targets dropping, and the ticket dispensing at game end — the full arc of play is visible without standing at the lane.
Specifications
| Feature |
Detail |
| SKU / Model |
MS9710 (1-player), MS97102 (2-player), MS97103 (3-player) |
| Dimensions (Assembled) |
40 in W x 123 in D x 102.5 in H |
| Power Requirements (Domestic) |
110V standard (115V / 60Hz / 3.20A / 184W) |
| Power Requirements (Export) |
220V / 230V / 50Hz / 1.60A / 184W (available on request) |
| Ticket Size |
2 in x 4 in, customizable specialty ticket |
| Player Count |
1 per lane (multi-lane models available) |
| Attendant Required |
No |
Why Operators Love It
Zero Labor Per Cycle
Ball delivery, target sensing, score tracking, ticket dispensing, and game reset are all handled internally — no staff needs to be stationed at the lane between plays or between players.
Configurable Without Hardware Changes
Game timing, difficulty, and scoring parameters are set electronically. Operators can tune the unit for different crowd demographics or venue requirements without opening the cabinet for mechanical adjustments.
Scalable Lane Count Fits the Floor
Each unit is a self-contained 40-inch-wide lane. Operators can deploy a single unit in a tight corner or bank several units side by side — factory-configured two- and three-lane models simplify the ordering process for larger installations.
Standard 110V Domestic Power
At 184W draw on a standard 110V / 60Hz circuit, each unit plugs into a conventional outlet. A 220V / 50Hz export configuration is also available for international placements.
Frequently Asked Questions
Does the Cat Rack AFG require a staff attendant during play?
No. The Cat Rack AFG is fully attendant-free. Built-in sensors detect ball throws and target hits, and the machine resets automatically for the next player without any staff involvement.
What type of ticket does the Cat Rack AFG dispense?
The unit dispenses a specialty 2-inch x 4-inch ticket. The ticket format is customizable and can be exchanged immediately for prizes or saved by players to accumulate toward larger rewards.
What is the assembled footprint of the Cat Rack AFG?
Each single-lane unit measures 40 inches wide by 123 inches deep by 102.5 inches tall. When grouping multiple units, each additional lane adds another 40 inches of width to the total bank.
What model numbers are available for the Bob's Space Racers Cat Rack?
The Cat Rack AFG is available in three configurations: MS9710 (1-player single lane), MS97102 (2-player), and MS97103 (3-player). Multi-lane models are factory-built units, not field-assembled stacks of single lanes.
Ideal Placement
The Cat Rack AFG is suited for family entertainment centers, carnival-style midway sections, trampoline parks, and mini-golf clubhouses where a ball-throw lane fits naturally into the activity mix. Its 40-inch per-lane width works in both compact single-lane installations and full multi-lane midway corridors. Bowling center arcades and pizza restaurant game rooms with open floor plans can also accommodate a two- or three-unit bank.
Shipping & Setup
We offer flexible freight delivery options, including curbside and lift-gate services. Shipping costs and timing are calculated at checkout based on your location and requirements.
Warranty & Support
Your purchase includes a standard manufacturer warranty and access to technical support to ensure long-term performance and uptime.
