Elaut E-Claw 600 Series

Three players run their claws at the same time. Prizes sit upright on interior shelves, each one visible through the glass before the drop.

Overview

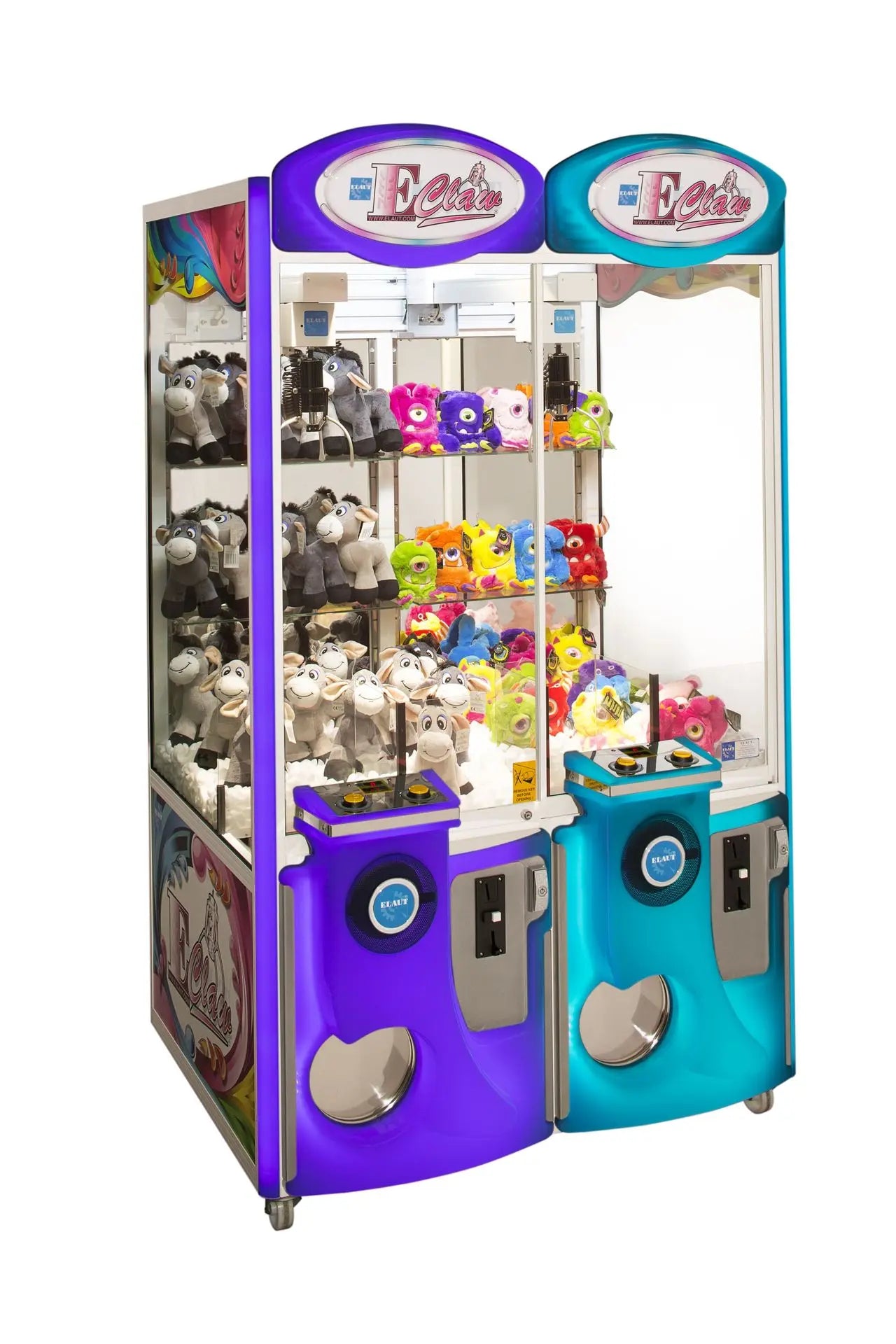

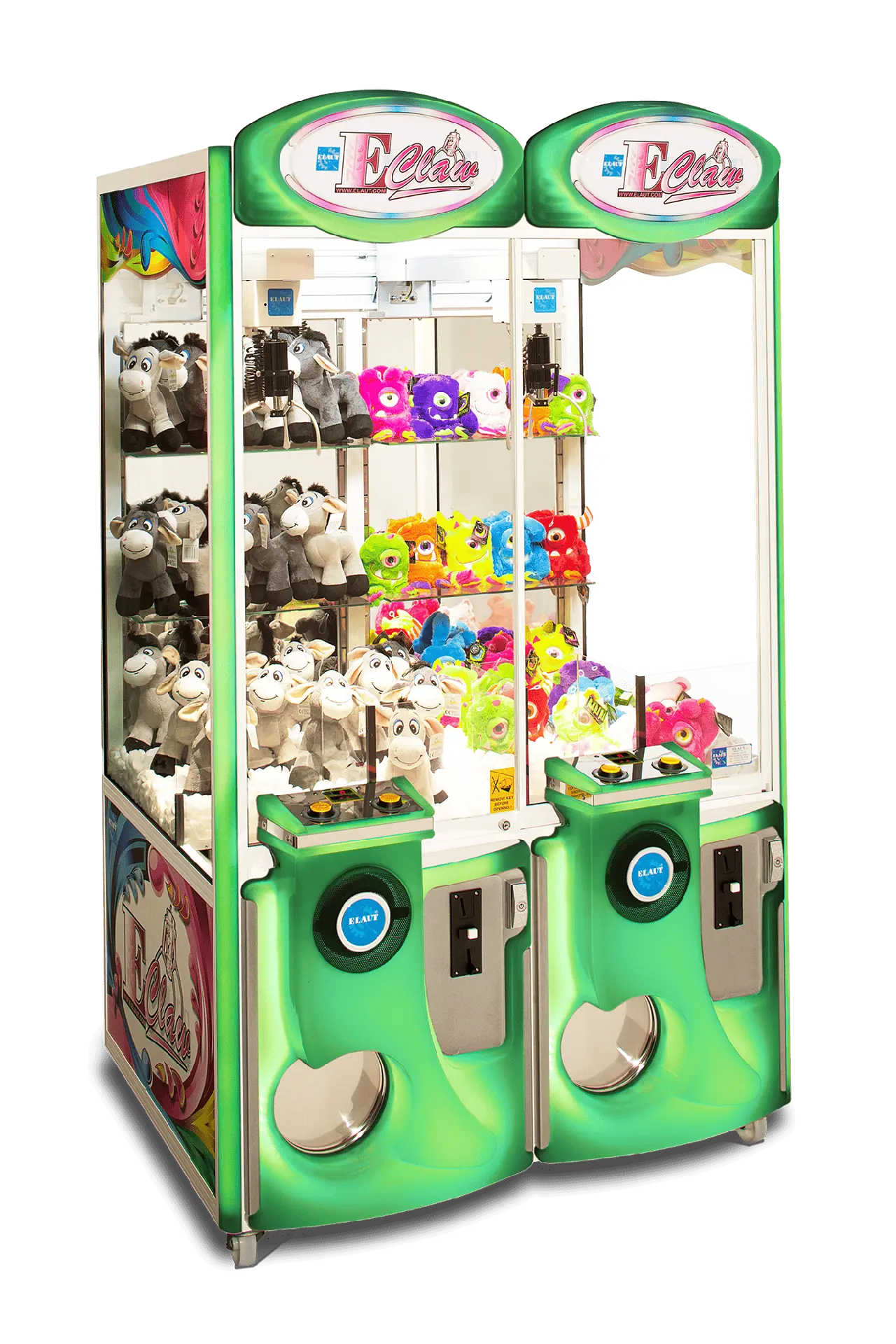

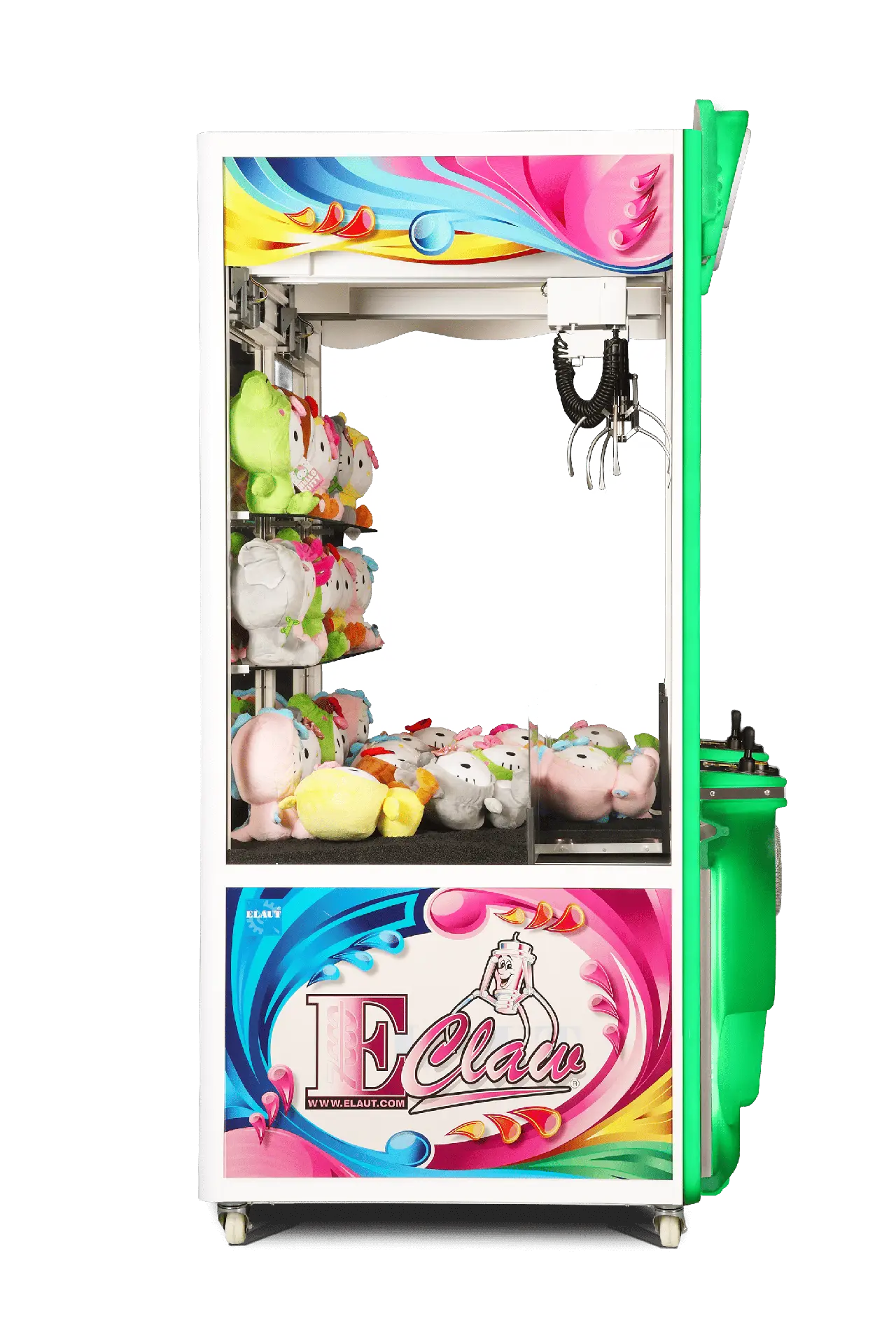

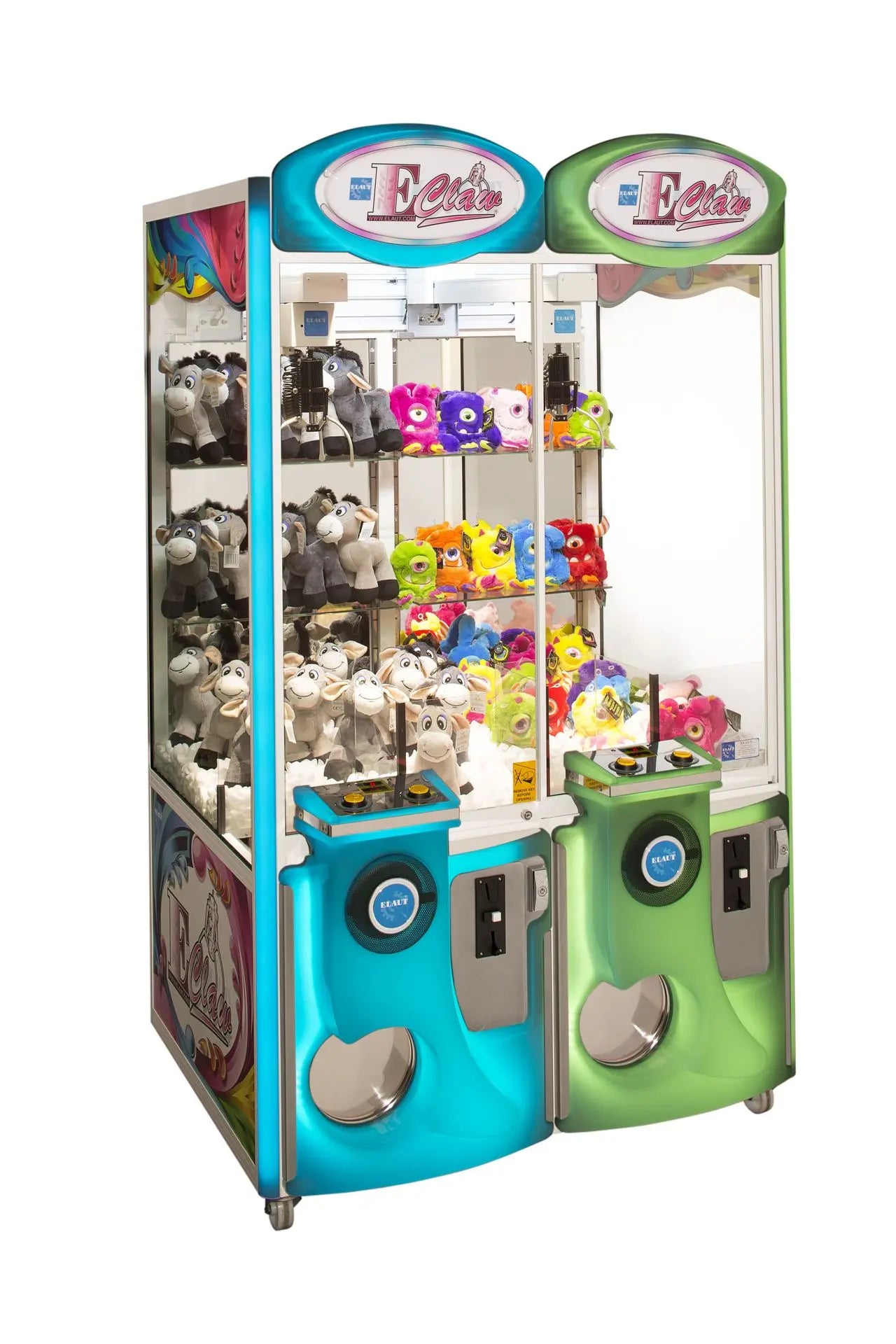

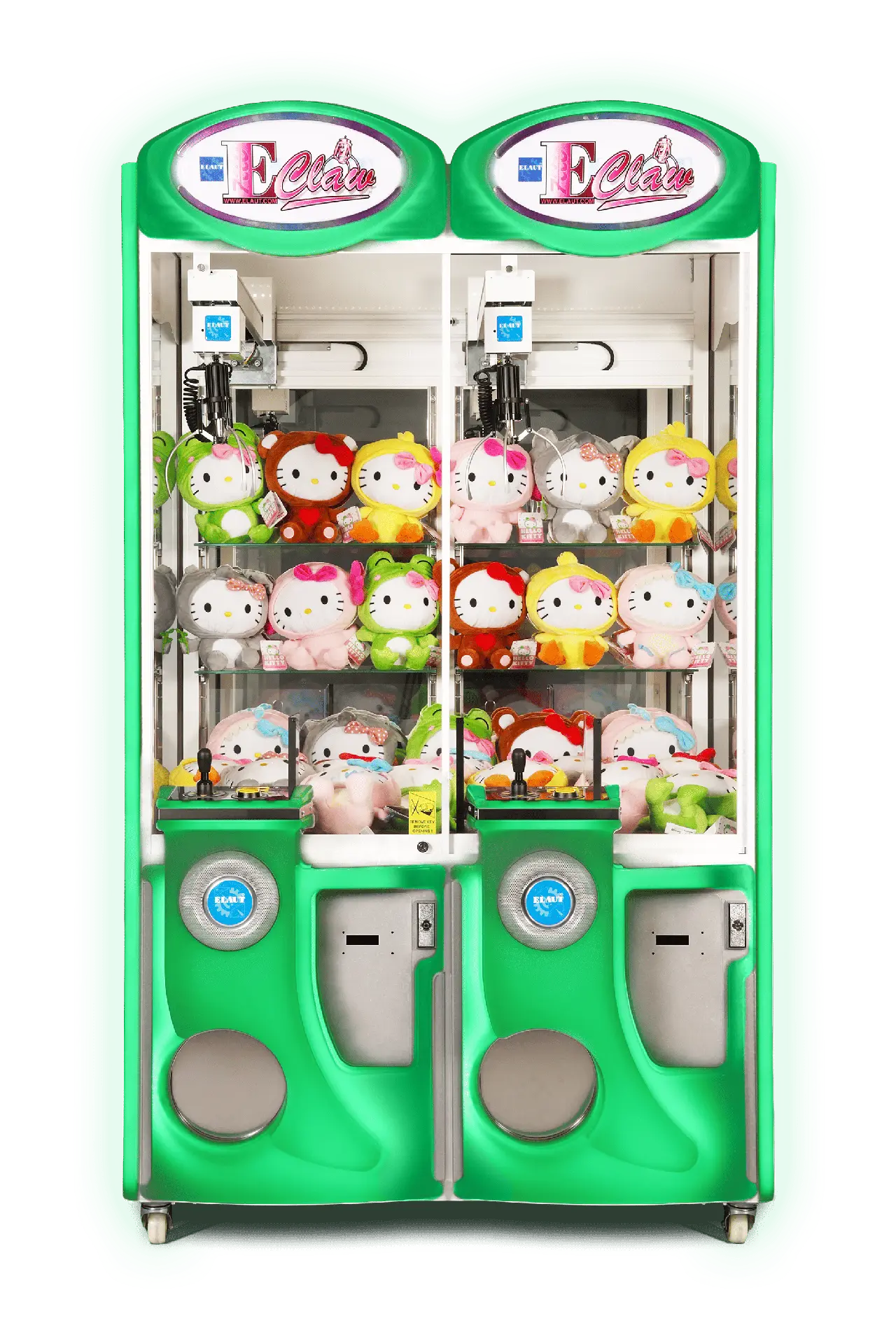

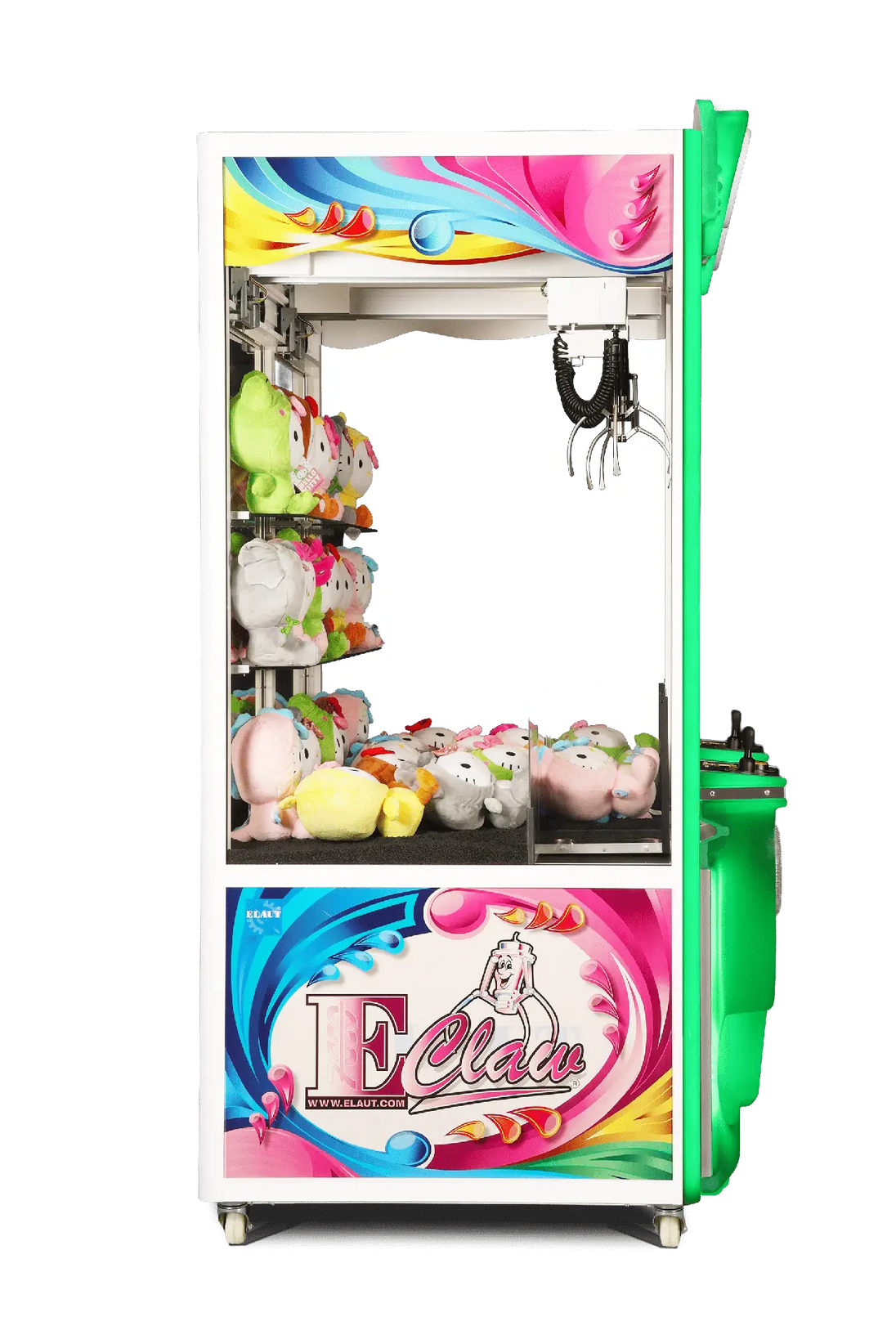

The Elaut E-Claw 600 Series is a commercial crane machine available in 1-, 2-, and 3-player configurations, built around a 600mm-wide playfield. It runs on Elaut's patented IntraXion control system, which continuously tracks and corrects gantry position during play and handles all operator configuration — payout frequency, prize control, and gameplay parameters — through a single interface. The translucent cabinet front with multi-color LED backlighting cycles through more than 300,000 colors and is operator-adjustable to a fixed tone or continuous color rotation.

Key Features

Patented IntraXion Intelligent Control System

The IntraXion system tracks gantry position at all times and applies corrections continuously during play, keeping crane movement accurate across long operating hours. The gantry does not rely on micro-switches, reducing a common failure point. Operators configure payout frequency, prize control, and all gameplay parameters through the same interface with no secondary programming hardware required.

Patented RGB LED Cabinet Lighting

Each player side uses a translucent front panel with multi-color LEDs behind it. The system is field-adjustable to a single fixed color or a continuous color-cycle sequence across more than 300,000 combinations. The illuminated side header and panel are included on 600 and 900 series models. An illuminated prize drawer provides additional interior visibility.

Open Prize Display Shelves

Interior shelves hold plush and merchandise upright in a tiered arrangement, keeping individual prizes oriented toward the player. Each target is legible through the cabinet glass before the claw descends — the machine's superstructure is designed to keep that sightline open from the front of the cabinet.

Removable Gantry and Lockable Cabinet Storage

The gantry lifts out as a unit for servicing without disassembling the cabinet exterior. A lockable cashbox is housed inside a pull-out drawer; that same illuminated drawer provides additional storage space for onsite prize stock, so operators can restock directly from the machine during a service stop.

Flexible Controls, Payment, and Optional Add-Ons

The E-Claw 600 supports joystick or push-button control configurations. It ships with a multicoin mechanism and is DBA- and card-swipe-ready; the coin mechanism can also be replaced with a coin comparator. Additional factory options include a ticket dispenser for mercy ticket payouts, a Winners Gallery LCD camera system, and different claw sizes to accommodate different prize types — claw size must be specified at time of order.

How It Plays

The player moves the claw over the prize shelf arrangement using the joystick or push-button controls, then commits to the drop. Because prizes sit upright on interior shelves rather than loose in a bin, the exact target is visible through the glass the entire time the player is positioning — bystanders watching from outside the cabinet see the same clear view. On the 3-player unit, all three stations can run simultaneously, keeping the machine in continuous motion during peak traffic.

Specifications

Why Operators Love It

47.5-inch width fits where 900-class cabinets don't

The 2-player model measures 47.5 inches wide; the 3-player model 70 inches. Both fit wall slots, corner positions, and smaller FEC layouts that cannot accommodate a 900mm-class crane cabinet.

Mercy ticket dispenser option covers skill-payout venues

An optional ticket dispenser for mercy ticket payouts can be factory-installed, making the E-Claw 600 configurable for redemption-focused venues where ticket output on near-misses is part of the play structure.

Winners Gallery LCD camera documents successful plays

An optional Winners Gallery LCD and camera system captures and displays images of successful prize grabs. The display is visible on the machine exterior, showing a running gallery of wins.

Vandal-resistant front and tamper-deterrent cashbox

The cabinet front is built to resist vandal damage. The cashbox is lockable and housed inside the illuminated pull-out drawer — a separate locked enclosure from the prize and storage areas.

Ideal Placement

The E-Claw 600 fits arcades, family entertainment centers, bowling alleys, and route locations where floor space is at a premium. The 600mm playfield width makes it a practical choice for venues that cannot accommodate a full 900mm-class crane, and the multi-player configurations allow a single footprint to serve more than one player at a time.

Shipping & Setup

We offer flexible freight delivery options, including curbside and lift-gate services. Shipping costs and timing are calculated at checkout based on your location and requirements.

Warranty & Support

Your purchase includes a standard manufacturer warranty and access to technical support to ensure long-term performance and uptime.
